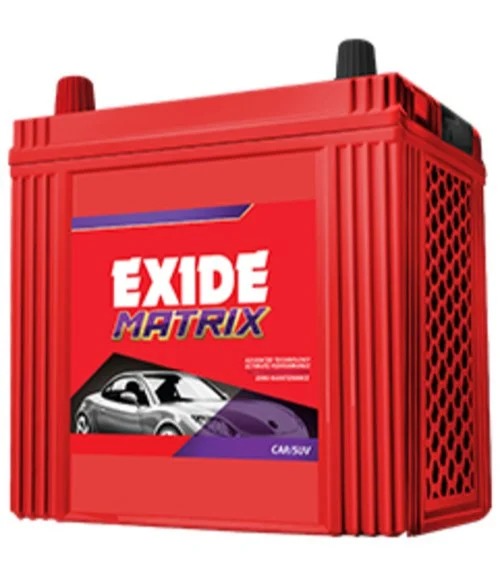

Madha Battery - Exide Matrix

Maintenance-free batteries with advanced Ca - Ca system
Long wet shelf life - no freshening charge required for up to 6 months from date of manufacture
Special paste formulation for positive and negative plates - higher life expectancy with superior charge acceptance in service
Double-clad polyethylene and glass mat separation - high reliability and longer life
Special Omega type cover design fitted with Venturi type chamber cover - excellent spill-resistant characteristics
Attractive cosmetics

Technical Specification of Exide Matrix Range of Batteries
Battery Type	Part Nmber	Ref C20 Capcity (Ah)	Maximum Overall Dimensions (mm)			Normal Filled Weight (Kg)	Electrolyte Volume (Litres)	Charging Current (A)	CCA AT - 18° C As Per			Acid Level Indicator	Battery Layout
			L	W	H				EN	IEC	SAE
MT35R	FMT0-MT35R	35	197	129	227	11.5	2.1	2.5	-	270	332	PRESENT	RIGHT LAYOUT
MT35L	FMT0-MT35L	35	197	129	227	11.5	2.1	2.5	-	270	332	PRESENT	LEFT LAYOUT
MT35LBH	FMT0-MT35LBH	35	197	129	227	11.3	2.1	2.5	-	270	332	PRESENT	LEFT LAYOUT
MT45L	FMT0-MT45L	45	238	129	227	14.4	3.0	3.5	-	330	410	PRESENT	LEFT LAYOUT
MT45D21LBH	FMT0-MT45D21LBH	45	205	177	222	15.2	3.1	3.5	-	330	410	PRESENT	LEFT LAYOUT
MT70D23L	FMT0-MT70D23L	68	231	173	223	17.6	3.6	4.0	-	450	565	PRESENT	LEFT LAYOUT
MT75D23R	FMT0-MT75D23R	68	231	173	223	17.6	3.6	4.0	-	450	565	PRESENT	RIGHT LAYOUT
MT75D23L	FMT0-MT75D23L	68	231	175	223	17.6	3.6	4.0	-	450	565	PRESENT	LEFT LAYOUT
MTDIN74	FMT0-MTDIN74	74	278	175	190	19.0	3.8	5.0	340	-	570	PRESENT	LEFT LAYOUT
MTDIN90	FMT0-MTDIN90	90	353	175	190	26.0	5.2	6.3	800	-	730	NOT PRESENT	LEFT LAYOUT
MTDIN100	FMT0-MTDIN100	100	353	175	190	27.0	5.5	7.0	750	-	690	PRESENT	LEFT LAYOUT
